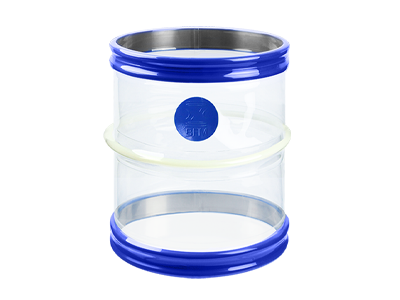

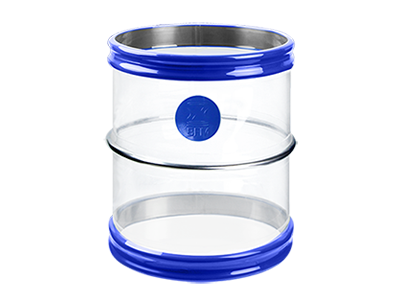

Steel Rings on 1 spigot-transparent background-400x300px

Steel Rings on 2 spigots-transparent background-400x300px

Steel Rings + 2 spigots-transparent background-400x300px

Product Description

Most BFM^® fitting connectors are available with support rings to help maintain the shape of the connector and keep the walls open for product flow, particularly when under vacuum or for longer lengths.

Rings are fully encased in the material on the outside of the connector and, therefore, don't come into contact with product flowing through the connector.

Application(s):

Useful in both negative and positive pressure situations, rings help support the walls of the connector in higher pressure environments.

Exclusion(s):

Tapered connectors cannot be made with rings.
See Specifications below for details on which connectors can have Rings.

Physical Properties

Material/Fibre
SS (Stainless Steel T304L) or PE (Plastic)
Can be applied to
Seeflex 040E Connector, Corner Connector 040E, Seeflex 040AS Connector, Teflex NP Black Connector, Teflex NP Opaque Connector, LM3 Connector, LM4 Connector, Teflex Woven Connector, and Blanking Sock. Seeflex 020 Connector on Request.
Maximum Number of Rings (on a single connector)

a single connector)

All permitted materials (except Teflex NP): 10, Teflex NP Ø150mm - 500mm: 8, Teflex NP Ø100 & 125mm: 6
Multiple rings evenly spaced at a minimum

CL< 850mm (331/2”): 100mm (4”) apart (max 4) CL ≥ 850mm (331/2”): 200mm (6”) apart (max 10)
Applicable Connector Materials
Seeflex 040E (incl Wash Sleeves & Blanking Socks/Bins), Seeflex 040AS, LM3, LM4, Teflex & Teflex NP (Seeflex 020E is on request only).

Certification and Compliance

3A Certified

The use of rings will not affect 3A compliance of any connector.

Dimensions

Available Diameters
Stainless Steel
Ø100mm (4")
Ø125mm (5")
Ø150mm (6") through to Ø500mm in 50mm (2") increments.
PE (Plastic)
Ø100mm (4")
Ø125mm (5")
Ø150mm (6") through to Ø1,000mm in 50mm (2") increments.

Applicable Connector Lengths
Min: 150mm (6")
Max: Ø550mm-1.0m (211/2-391/2”) = 500mm (20") Up to Ø500mm (191/2”) = 4.5m (14ft 9”)
Distance between Spigot & Rings)

150mm (6") long connectors: 75mm (3") All other lengths: 100mm (4")

Ring thickness (diameter)

Stainless Steel - 6.0mm (1/4") Plastic - 8.0mm (5/16") (& plastic ring joiner is approx 10mm (25/64"))
