Product Description

Wherever you have a flexible connection in a live production system, if the connector is removed at any time, there is always a potential risk that hands can be placed near dangerous moving parts, such as rotary valves and rotating knives.

Now you can have added peace of mind that you can monitor when a BFM^® fitting is removed in these areas.

The Pneumatic Monitoring System is designed to be used with BFM®'s Seeflex range of blue band connectors.

Application(s):

• Designed to be a monitoring system in positions where there is a risk that hands could be placed near dangerous moving parts, such as rotary valves and rotating knives.
• A simple to install system that pumps pressurised air between the cuff of the BFM® connector and the spigot.
• Air-line sensors immediately detect if this outward pressure is released as the connector cuff begins to pushed inwards and sets off an alarm and/or shuts off any moving parts below.
• Features two pressure sensor switch/displays, and a tamper-proof gauge.
• Can be used as a positional sensor to ensure all connectors in a large plant are installed correctly at all times.

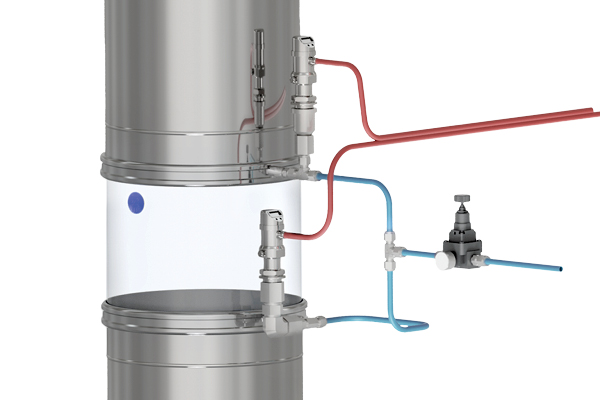

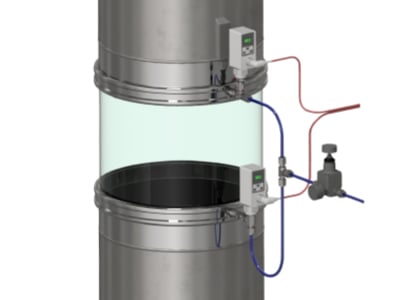

The system works by pumping pressurized air between the cuff of the BFM® blue band connector and the spigot.

Air-line sensors immediately detect if this outward pressure is released as the connector cuff begins to get pushed inwards anywhere around the connector when it is being removed, setting off an alarm and/or shutting off any moving parts below.

The control system can be arranged for multiple connectors to aid in monitoring larger installations.

Counters visibly show when the seal is not correct and the system can also be used as a positional sensor to ensure all connectors in a large plant are installed correctly at all times.
