Case Study: AkzoNobel Eliminates Dust Problems with BFM®

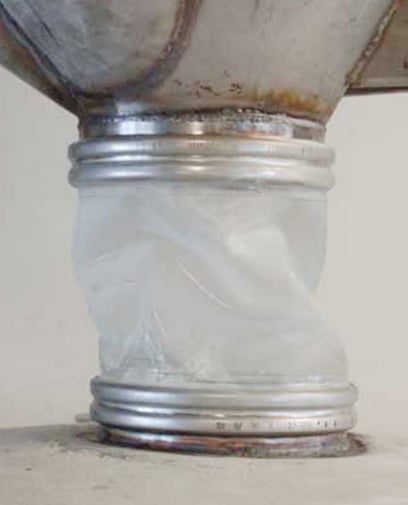

Akzo Nobel plant after BFM® connectors were installed

Explosion Risk Reduced for AkzoNobel

Health and safety is paramount for global chemicals manufacturer AkzoNobel at its Elotex plant in Geleen, the Netherlands, but the construction additives produced at this plant involve fine, abrasive powders which were proving hard to contain.  The resultant dust leakage posed a real explosion risk.

After installing a BFM® fitting system on their sifter, AkzoNobel were so impressed with its performance they are gradually replacing all of their connectors with BFM®.

The Challenge

Fine, abrasive powders, combined with a pneumatic conveying system, meant that even small tears or gaps in the traditional clamped flexible connectors at the plant caused dust leakage.

The hose-clamp seals did not perform well under pressure, and with 25 different fittings, manual error with installing the existing clamp & hose connectors to the incorrect length also added to the leakage problems.

The real risk of explosion in the plant meant that AkzoNobel were keen to find a fitting that would provide a durable, sealed system and also allow them to standardize their fittings across the plant.

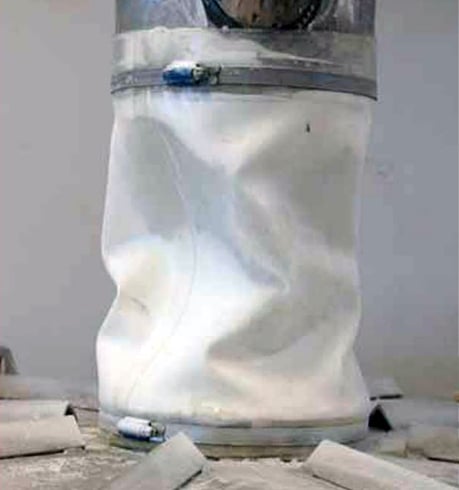

Akzo Nobel plant before BFM® connectors were installed

The BFM® Solution

After an initial trial BFM® fitting system was installed in the most challenging position on the sifter, the seal was so superior that AkzoNobel are now replacing all 25 flexible connectors with BFM® fitting. There is no longer dust leaking into the plant, and this has significantly reduced the risk of explosion.

As the old connectors are replaced, the pipes and spigots are being adjusted to standardise the sizes, helping to reduce the inventory and the number of suppliers.

Replacement is also now fast and easy with no possibility of incorrect installation.

Akzo Nobel plant after BFM® connectors were installed

Benefits Achieved

BFM® Quick Changeovers Icon in BlueQuick Changeovers

Fitting the new BFM® connector is so simple that there can no longer be incorrect installation problems.

BFM® Reduced Downtime Icon in BlueReduced Downtime

Replacement time has been drastically reduced.

BFM® Explosion Resistant Icon in BlueExplosion Resistant

The sealed system created by the BFM® fitting has removed the dust leakage in the air, significantly reducing the risk of explosion.

BFM® Streamline Inventory Icon in BlueStreamlined Inventory

The pipes are all being adjusted as the BFM®’s are installed to standardize the connector sizes, reducing inventory issues.

Here's what the client said about BFM®:

“After seeing it I was immediately convinced. In all its simplicity, it is extremely effective. We assembled a BFM® fitting alongside an existing one so everyone could see the difference. After a few months it was clear: the BFM® fitting sealed perfectly and remained transparent. We are very happy with the BFM® fitting.”

– Hub Knoren
Maintenance Engineering Technician, AkzoNobel Elotes, Geleen



Case Study courtesy of BFM® Distributor Vlint (Netherlands)
